Design Options

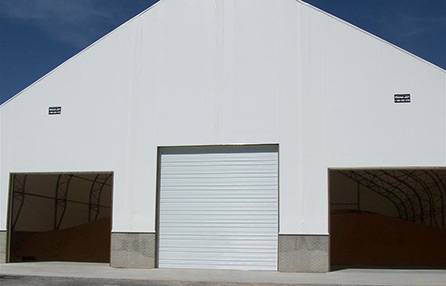

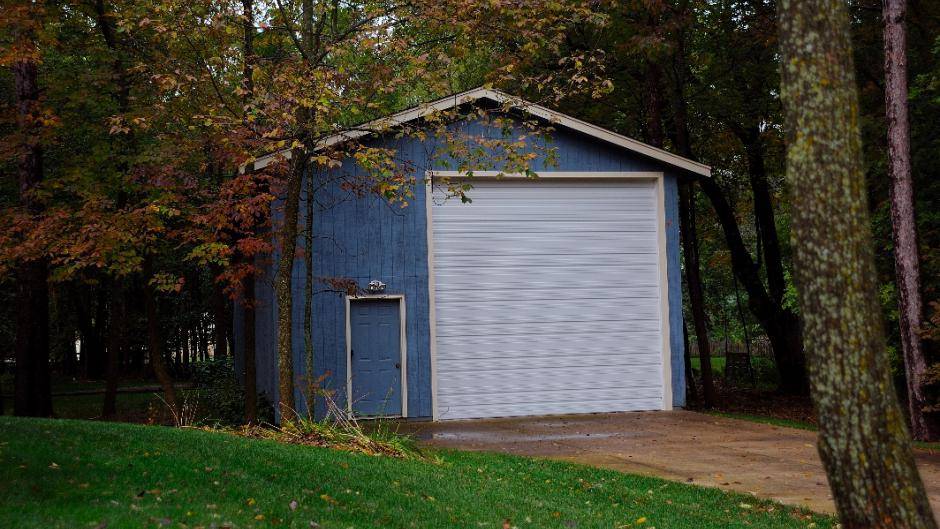

![Ribbed Steel Pan & Pan-Insulated Commercial Garage Door – Garage Door Services, Inc. Ribbed Steel Pan & Pan-Insulated Commercial Garage Door - Garage Door Services, Inc.](https://www.gdsomaha.com/wp-content/uploads/2019/09/Ribbed-Steel-1024x694.jpg)
![Screen Shot 2019-09-29 at 12.44.17 PM](https://www.gdsomaha.com/wp-content/uploads/2019/09/Screen-Shot-2019-09-29-at-12.44.17-PM.jpg)
Section Resources
![Screen Shot 2019-09-29 at 12.44.27 PM](https://www.gdsomaha.com/wp-content/uploads/2019/09/Screen-Shot-2019-09-29-at-12.44.27-PM.jpg)
Track Resources
Standard Lift Doors | dwg | pdf
Low Headroom | dwg
Front Mount Low Headroom | pdf
Rear Mount Low Headroom | pdf
High Lift Doors dwg | pdf
Vertical Lift Doors dwg | pdf
Incline dwg | pdf
Reverse Angle Mounted Track | pdf
Bracket Mounted Track | pdf
Clip Angle Mounted Track | pdf
Continuous Angle Mounted Track | pdf
Ribbed Steel Pan & Pan-Insulated Model Selection Chart
Model | Insulation | R-Value | Section Gauge & Thickness | Max Size | Spec Sheets |
---|---|---|---|---|---|
Insulated Ribbed Steel Doors | |||||
3221 | 1-1/2″ Polystyrene | 8.0 | 20 gauge steel exterior/vinyl back 2” Thick Section |
24’2″ x 16’0″ | 3-Part Spec Spec Data Sheet Section Drawing BIM Objects Product Flyer |
3222 | 1-1/2″ Polystyrene | 8.0 | 20 gauge steel exterior/steel back 2” Thick Section |
24’2” x 16’0” | 3-Part Spec Spec Data Sheet Section Drawing BIM Objects Product Flyer |
3241 | 1-1/2″ Polystyrene | 8.0 | 24 gauge steel exterior/vinyl back 2” Thick Section |
34’2” x 20’0” | 3-Part Spec Spec Data Sheet Section Drawing BIM Objects Product Flyer |
3242 | 1-1/2″ Polystyrene | 8.0 | 24 gauge steel exterior/steel back 2” Thick Section |
24’2” x 18’0” | 3-Part Spec Spec Data Sheet Section Drawing BIM Objects Product Flyer |
3251 | 1-1/2″ Polystyrene | 8.0 | 25 gauge steel exterior/vinyl back 2” Thick Section |
20’2” x 16’0” | 3-Part Spec Spec Data Sheet Section Drawing BIM Objects Product Flyer |
3252 | 1-1/2″ Polystyrene | 8.0 | 25 gauge steel exterior/steel back 2” Thick Section |
20’2” x 16’0” | 3-Part Spec Spec Data Sheet Section Drawing BIM Objects Product Flyer |
Non-Insulated Ribbed Steel Doors | |||||
3220 | N/A | N/A | 20 gauge steel exterior | 24’2” x 16’0” | 3-Part Spec Spec Data Sheet Section Drawing BIM Objects Product Flyer |
3240 | N/A | N/A | 24 gauge steel exterior | 40’2” x 20’0” | 3-Part Spec Spec Data Sheet Section Drawing BIM Objects Product Flyer |
3250 | N/A | N/A | 25 gauge steel exterior | 20’2” x 16’0” | 3-Part Spec Spec Data Sheet Section Drawing BIM Objects Product Flyer |
